1707502 | Phoenix Contact

Pin header, 10 pole, pitch 3.81 mm, straight, black, 1707502

Order No.: 63P3428
EAN: 4046356034203
MPN:
1707502
MCV 1,5/10-G-3,81 P26 THR
Series: MCV

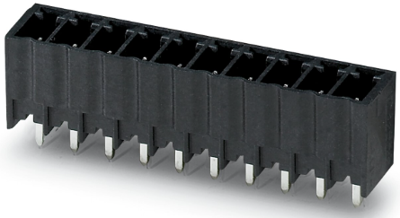

1707502 Phoenix Contact PCB Connection Systems Image 1

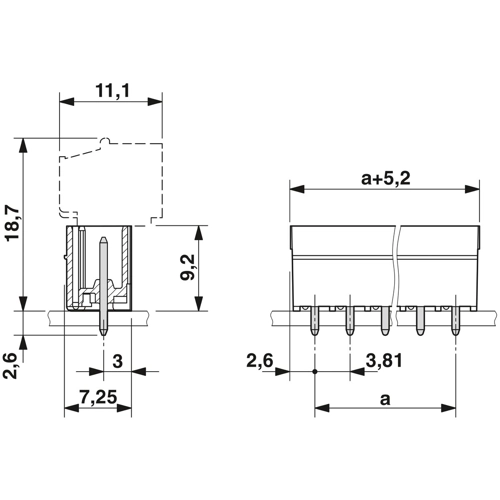

1707502 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.5105 € *
Available in 5 Days: 1,300 pcs. - if ordered today
Total Price:
3.51 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5105 €
10 pcs.
3.2368 €
50 pcs.
2.9512 €
100 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Colour black
Grid 3.81 mm
Number of rows 1
Connection plating tin-plated
Contact type pin
Type of locking No
Version pin header
Orientation straight
Rated current 8 A
Additional parts equipped
Pin number 10 pole
Rated voltage 160 V
contact surface tin-plated
Connection solder connection
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
