1657915 | Phoenix Contact

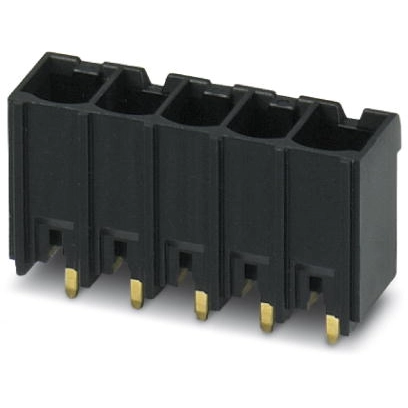

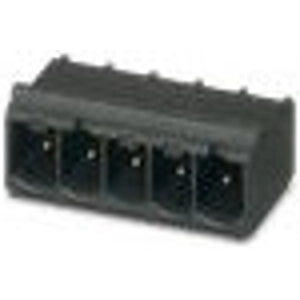

Contact insert, 5 pole, pitch 5.08 mm, angled, black, 1657915
Unit Price (€ / pc.)
3.9032 € *
Available: 44 pcs.
Available in 5 Days: 6,378 pcs. - if ordered today
Pin contact, 1657915, Phoenix Contact
MSTB contact insert, For PCB assembly, 24 V, 5-positions, With angled solder pins, RAL 9005 (black), For panel mounting frame VS-PPC-F2-MSTB - 1R-P
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | contact insert | |
| Contact type | pin | |
| Pin number | 5 pole | |
| Grid | 5.08 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| contact surface | nickel-plated/gold-plated | |
| Rated voltage | 24 V | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
