1540620 | Phoenix Contact

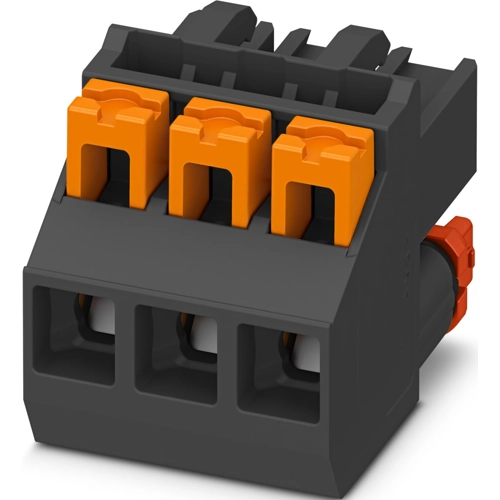

PCB connector, 1540620, Phoenix Contact

PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: ICC.-PPC2,5/.-5,0, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: ICC 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard, Printed version, color of the spring lever: orange.

Features

• Reduction of the carbon footprint through the use of bio-based plastics
• Time saving push-in connection, tools not required
• Variable coding, for reliable protection against incorrect connection
• Push-in technology for quick and easy wiring
• Quick and easily coded when initially connecting the connector and header
• Intuitive operation due to color-coded actuating push button
