1464805 | Phoenix Contact

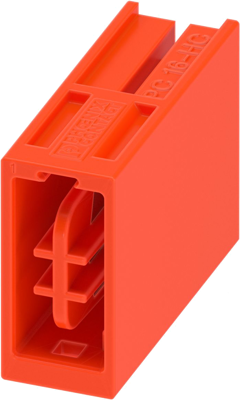

Pin header, 1 pole, pitch 10.16 mm, angled, red, 1464805
Unit Price (€ / pc.)
3.1178 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB header, 1464805, Phoenix Contact
PCB header, nominal cross section: 16 mm², color: red, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Pin, number of rows: 1, number of positions: 1, product range: PC 16 HC/..-G, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 4, plug-in system: COMBICON PC 16 advanced, Pin connector pattern alignment: Standard, locking: without, mounting: without.
Features
- Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
- Easy PCB replacement thanks to plug-in modules
- Well-known mounting principle allows worldwide use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 76 A | |
| contact surface | tin-plated | |
| Colour | red | |
| Contact type | pin | |
| Grid | 10.16 mm | |
| Orientation | angled | |
| Rated voltage | 1 kV | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
