1464119 | Phoenix Contact

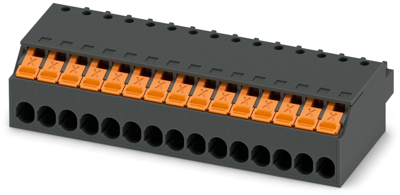

Socket header, 15 pole, pitch 3.5 mm, straight, black, 1464119
Unit Price (€ / pc.)
10.5791 € *
Standard delivery time from the manufacturer is: 10 Weeks
PCB connector, 1464119, Phoenix Contact
PCB connector, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 15, product range: XPC 1,5/..-ST, pitch: 3.5 mm, connection method: Push-X-connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MC 1,5, locking: without, mounting method: without.
Features
- Highly convenient operation thanks to direct, effortless, and tool-free conductor connection
- Quick connection of all conductor types with and even without ferrules
- Reliable wiring thanks to acoustic and visual feedback
- Quick conductor release by simply pressing the orange release button
- Plug-in compatibility with existing headers of the COMBICON portfolio
- Quick and convenient testing using integrated test option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Connection | Push-X | |
| Orientation | straight | |
| Contact type | socket | |
| Version | socket header | |
| Rated current | 8 A | |
| Colour | black | |
| Rated voltage | 160 V | |
| Number of rows | 1 | |
| Type of locking | No | |
| Connection plating | tin-plated | |
| Pin number | 15 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
