1431329 | Phoenix Contact

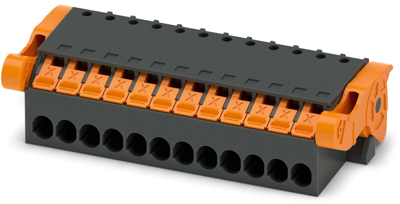

Socket header, 12 pole, pitch 3.5 mm, straight, black, 1431329

Order No.: 64P3308
EAN: 4063151798765
MPN:
1431329
Series: XPC 1,5
1431329 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
9.8532 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
492.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
9.8532 €

PCB connector, 1431329, Phoenix Contact

PCB connector, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 12, product range: XPC 1,5/..-ST-LR, pitch: 3.5 mm, connection method: Push-X-connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MC 1,5, locking: Lock-and-release locking system, mounting method: Lock & Release ejector lever.

Features

  • Highly convenient operation thanks to direct, effortless, and tool-free conductor connection
  • Quick connection of all conductor types with and even without ferrules
  • Reliable wiring thanks to acoustic and visual feedback
  • Quick conductor release by simply pressing the orange release button
  • Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
  • Plug-in compatibility with existing headers of the COMBICON portfolio
  • Quick and convenient testing using integrated test option
Technical specifications
Grid 3.5 mm
Connection Push-X
Rated voltage 160 V
Contact type socket
Pin number 12 pole
Number of rows 1
Type of locking Yes
Orientation straight
Colour black
Version socket header
Connection plating tin-plated
Rated current 8 A
contact surface tin-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
