1378139 | Phoenix Contact

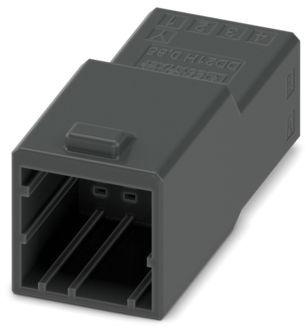

Pin header, 8 pole, pitch 2.5 mm, straight, black, 1378139

Order No.: 63P4496
EAN: 4063151745929
MPN:
1378139
DD21H 0,85/ 8-FH-2,5-Y
Series: CONNEXIS
1378139 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.1543 €

PCB connector, 1378139, Phoenix Contact

PCB connector, color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact connection type: Pin, number of rows: 2, number of positions: 8, product range: DD21H 0,85/..-FH, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, pin layout: Linear pinning, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Engagement nose.

Features

  • Cost-effective connection of crimped conductors in large quantities
  • Small component size for applications where space is at a premium
  • Intuitive locking mechanism prevents accidental disconnection
Technical specifications
Colour black
Type of locking Yes
Rated current 5 A
Grid 2.5 mm
Pin number 8 pole
Version pin header
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 160 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
