1374883 | Phoenix Contact

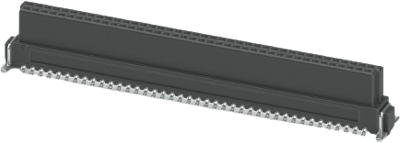

Female connector, 80 pole, pitch 1.27 mm, straight, 1374883
Unit Price (€ / pc.)
6.1999 € *
Available: 248 pcs.
Available in 10 days: 2,520 pcs. - if ordered today
Total Price:
6.20 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1999 €
10 pcs.
5.6049 €
50 pcs.
4.9147 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD female connector, 1374883, Phoenix Contact
SMD female connector, Nominal current: 2.1 A, Test voltage: 840 V AC, Number of positions: 80, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.
Features
- The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
- Time savings during the development process with customer-specific simulations for data integrity
- Gold-plated contact points enable long-term stable signal transmission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 80 pole | |
| Grid | 1.27 mm | |
| Version | female connector | |
| Connection | solder pin | |
| Rated current | 2.1 A | |
| Orientation | straight | |
| Number of rows | 2 | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
