1374882 | Phoenix Contact

Female connector, 68 pole, pitch 1.27 mm, straight, 1374882

Order No.: 63P3748
EAN: 4063151736354
MPN:
1374882
FR 1,27/ 68-FV 9,05
Series: FINEPITCH
1374882 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
5.7358 € *
Available: 0 pcs.
Available in 10 days: 8,960 pcs.
Leadtime: 2 Weeks **
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7358 €
10 pcs.
5.1527 €
50 pcs.
4.5577 €
*incl. VAT plus shipping costs
**Subject to prior sale

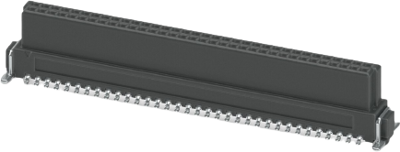

SMD female connector, 1374882, Phoenix Contact

SMD female connector, Nominal current: 2.1 A, Test voltage: 840 V AC, Number of positions: 68, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Pin number 68 pole
Rated current 2.1 A
Additional parts equipped
Number of rows 2
Connection solder pin
Grid 1.27 mm
Contact type socket
Orientation straight
Version female connector
contact surface gold-plated
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
