1374034 | Phoenix Contact

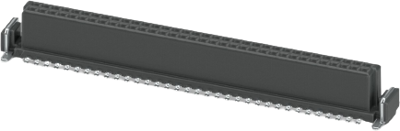

Female connector, 68 pole, pitch 1.27 mm, straight, 1374034

Order No.: 63P3692
EAN: 4063151733650
MPN:
1374034
FR 1,27/ 68-FV 6,25
Series: FINEPITCH
1374034 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
5.6525 € *
Available: 0 pcs.
Available in 10 days: 13,160 pcs.
Leadtime: 2 Weeks **
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6525 €
10 pcs.
5.0694 €
50 pcs.
4.4744 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD female connector, 1374034, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 68, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
contact surface gold-plated
Rated current 2.2 A
Grid 1.27 mm
Pin number 68 pole
Version female connector
Additional parts equipped
Orientation straight
Connection solder pin
Contact type socket
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
