1374027 | Phoenix Contact

Female connector, 12 pole, pitch 1.27 mm, straight, 1374027

Order No.: 63P3669
EAN: 4063151733643
MPN:
1374027
FR 1,27/ 12-FV 6,25
Series: FINEPITCH
1374027 Phoenix Contact PCB Connection Systems

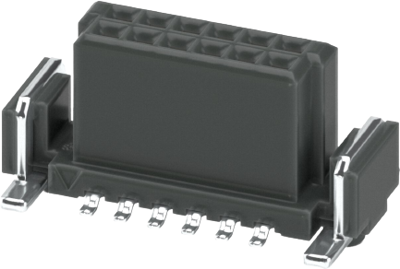

Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
10 pcs.
1.8921 €
50 pcs.
1.7255 €
100 pcs.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD female connector, 1374027, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 12, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
contact surface gold-plated
Connection solder pin
Number of rows 2
Contact type socket
Additional parts equipped
Rated current 2.2 A
Pin number 12 pole
Orientation straight
Version female connector
Grid 1.27 mm
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
