1373896 | Phoenix Contact

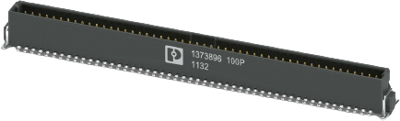

Male connector, 100 pole, pitch 1.27 mm, straight, 1373896

Order No.: 63P3667
EAN: 4063151734626
MPN:
1373896
FR 1,27/100-MV 1,75
Series: FINEPITCH
1373896 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
6.1999 € *
Available in 5 Days: 840 pcs. - if ordered today
Total Price:
6.20 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1999 €
10 pcs.
5.6049 €
50 pcs.
4.9147 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD male connector, 1373896, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 100, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Grid 1.27 mm
Connection solder pin
Version male connector
Orientation straight
Pin number 100 pole
Additional parts equipped
Contact type pin
contact surface gold-plated
Number of rows 2
Rated current 2.2 A
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
