1373892 | Phoenix Contact

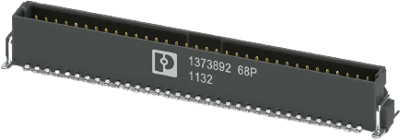

Male connector, 68 pole, pitch 1.27 mm, straight, 1373892

Order No.: 63P3661
EAN: 4063151734138
MPN:
1373892
FR 1,27/ 68-MV 1,75
Series: FINEPITCH
1373892 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
4.8909 € *
Available: 0 pcs.
Available in 10 days: 6,160 pcs.
Leadtime: 2 Weeks **
Total Price:
4.89 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8909 €
10 pcs.
4.4149 €
50 pcs.
3.8675 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD male connector, 1373892, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 68, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Pin number 68 pole
Rated current 2.2 A
Additional parts equipped
Number of rows 2
Connection solder pin
Grid 1.27 mm
Contact type pin
Orientation straight
Version male connector
contact surface gold-plated
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
