1373889 | Phoenix Contact

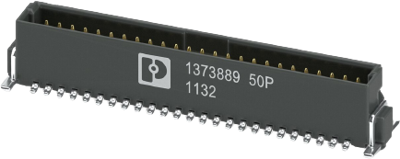

Male connector, 50 pole, pitch 1.27 mm, straight, 1373889

Order No.: 63P3660
EAN: 4063151734121
MPN:
1373889
FR 1,27/ 50-MV 1,75
Series: FINEPITCH
1373889 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
473.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
280 pcs.
1.6898 €

SMD male connector, 1373889, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 50, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
contact surface gold-plated
Grid 1.27 mm
Connection solder pin
Number of rows 2
Pin number 50 pole
Orientation straight
Version male connector
Rated current 2.2 A
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
