1373826 | Phoenix Contact

Male connector, 6 pole, pitch 1.27 mm, straight, 1373826

Order No.: 63P3652
EAN: 4063151734510
MPN:
1373826
FR 1,27/ 6-MV 1,75
Series: FINEPITCH
1373826 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Available in 10 days: 840 pcs.
Leadtime: 2 Weeks **
Total Price:
1.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.2257 €

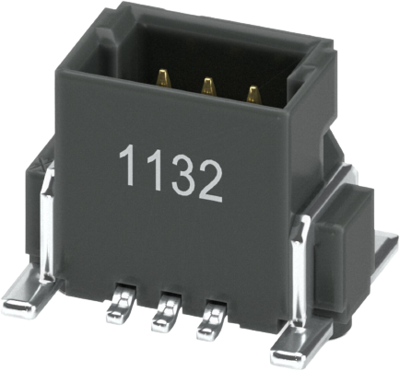

SMD male connector, 1373826, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 6, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
contact surface gold-plated
Rated current 2.2 A
Grid 1.27 mm
Pin number 6 pole
Version male connector
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
