1343953 | Phoenix Contact
Connector, 2 pole, straight, silver, 1343953
Unit Price (€ / pc.)
   21.3010 €  *
   Available in 5 Days: 51 pcs. - if ordered today
 Total Price:
  21.30 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 21.3010 €
 10 pcs.
 19.5874 €
 50 pcs.
 18.0285 €
 100 pcs.
 16.4101 €
  *incl. VAT plus shipping costs
  Subject to prior sale

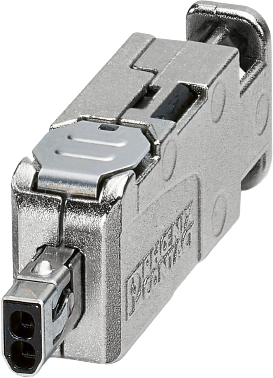

 Connector, 1343953, Phoenix Contact
Connector, Design: IEC 63171-2, Degree of protection: IP20, Number of positions: 2, 1 Gbps, Material: Metal, Connection method: IDC fast connection, Connection cross section: AWG 26 AWG- 22 AWG, Cable outlet: straight, Single pair ethernet.
Features
- Data transmission up to 600 MHz
- Compact design
- Mechanical interlock with locking clip
- High shock and vibration resistance
- Robust industrial design
- Assembly without special tools
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Connection | IDC connection | |
| Colour | silver | |
| Version | connector | |
| Pin number | 2 pole | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Breakable | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
