1340711 | Phoenix Contact

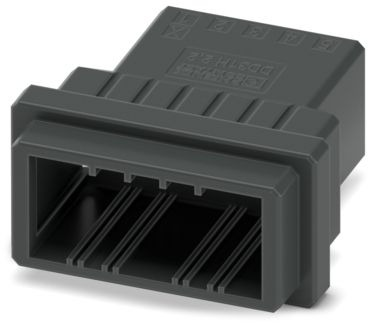

Pin header, 10 pole, pitch 3.81 mm, straight, black, 1340711
Unit Price (€ / pc.)
1.2257 € *
Available: 49 pcs.
PCB connector, 1340711, Phoenix Contact
PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact connection type: Pin, number of rows: 2, number of positions: 10, product range: DD31H 2,2/..-FH, pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, pin layout: Linear pinning, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Engagement nose.
Features
- Well-known mounting principle allows worldwide use
- Vertical connection enables multi-row arrangement on the PCB
- Easy PCB replacement thanks to plug-in modules
- Intuitive locking mechanism prevents accidental disconnection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Contact type | pin | |
| Connection | crimp connection | |
| Rated voltage | 160 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 10 pole | |
| Colour | black | |
| Version | pin header | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
