1340466 | Phoenix Contact

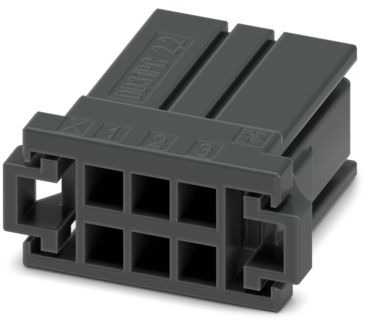

Socket header, 6 pole, pitch 3.81 mm, straight, black, 1340466

Order No.: 63P4249
EAN: 4063151646639
MPN:
1340466
DD31PC 2,2/ 6-3,81-X
Series: CONNEXIS
1340466 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4760 €

PCB connector, 1340466, Phoenix Contact

PCB connector, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact connection type: Socket, number of rows: 2, number of positions: 6, product range: DD31PC 2,2/.., pitch: 3.81 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Self-locking flange.

Features

  • Cost-effective connection of crimped conductors in large quantities
  • Small component size for applications where space is at a premium
  • Contacts arranged in a double row enable high packing density in a compact area
  • Intuitive locking mechanism prevents accidental disconnection
Technical specifications
Filter Property Value
Rated current 8 A
Rated voltage 160 V
Version socket header
Number of rows 2
Orientation straight
Pin number 6 pole
Grid 3.81 mm
Type of locking Yes
Contact type socket
Colour black
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
