1337145 | Phoenix Contact

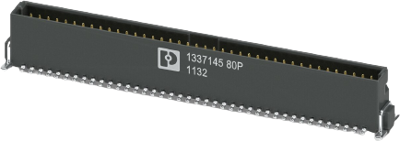

Male connector, 80 pole, pitch 1.27 mm, straight, 1337145

Order No.: 63P3646
EAN: 4063151639204
MPN:
1337145
FR 1,27/ 80-MV 3,25
Series: FINEPITCH
1337145 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
2.9036 € *
Available in 5 Days: 1,120 pcs. - if ordered today
Total Price:
813.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
280 pcs.
2.9036 €

SMD male connector, 1337145, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 80, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Grid 1.27 mm
Pin number 80 pole
Contact type pin
Rated current 2.2 A
Version male connector
Connection solder pin
Additional parts equipped
Number of rows 2
contact surface gold-plated
Orientation straight
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
