1337142 | Phoenix Contact

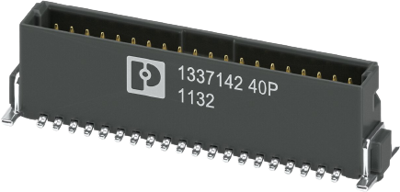

Male connector, 40 pole, pitch 1.27 mm, straight, 1337142

Order No.: 63P3642
EAN: 4063151639105
MPN:
1337142
FR 1,27/ 40-MV 3,25
Series: FINEPITCH
1337142 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Available in 5 Days: 560 pcs. - if ordered today
Total Price:
483.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
280 pcs.
1.7255 €

SMD male connector, 1337142, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 40, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Rated current 2.2 A
Orientation straight
Grid 1.27 mm
contact surface gold-plated
Number of rows 2
Additional parts equipped
Version male connector
Contact type pin
Connection solder pin
Pin number 40 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
