1337137 | Phoenix Contact

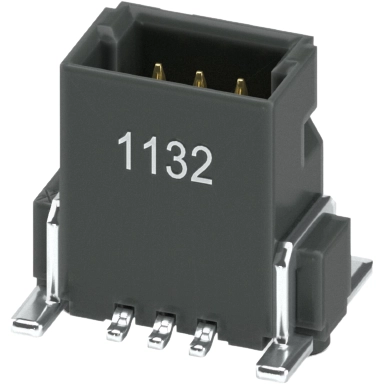

Male connector, 6 pole, pitch 1.27 mm, straight, 1337137

Order No.: 63P3634
EAN: 4063151637293
MPN:
1337137
FR 1,27/ 6-MV 3,25
Series: FINEPITCH
1337137 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 10 days: 1,120 pcs. - if ordered today
Total Price:
1.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3328 €

SMD male connector, 1337137, Phoenix Contact

SMD male connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 6, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Rated current 2.2 A
Version male connector
Number of rows 2
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 6 pole
Grid 1.27 mm
Contact type pin
Connection solder pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
