1337018 | Phoenix Contact

Female connector, 50 pole, pitch 1.27 mm, angled, 1337018

Order No.: 63P3626
EAN: 4063151638610
MPN:
1337018
FR 1,27/ 50-FH
Series: FINEPITCH
1337018 Phoenix Contact PCB Connection Systems

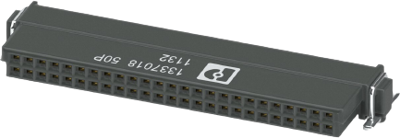

Image may differ
Unit Price (€ / pc.)
2.5585 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,432.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
560 pcs.
2.5585 €

SMD female connector, 1337018, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 500 V AC, Number of positions: 50, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Version female connector
Rated current 2.2 A
contact surface gold-plated
Contact type socket
Additional parts equipped
Pin number 50 pole
Number of rows 2
Orientation angled
Grid 1.27 mm
Connection solder pin
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
