1337015 | Phoenix Contact

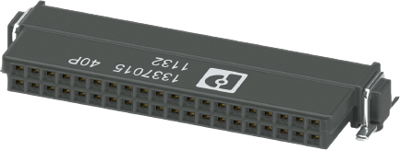

Female connector, 40 pole, pitch 1.27 mm, angled, 1337015

Order No.: 63P3625
EAN: 4063151637286
MPN:
1337015
FR 1,27/ 40-FH
Series: FINEPITCH
1337015 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
2.3443 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,312.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
560 pcs.
2.3443 €

SMD female connector, 1337015, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 500 V AC, Number of positions: 40, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Version female connector
Rated current 2.2 A
contact surface gold-plated
Contact type socket
Additional parts equipped
Pin number 40 pole
Number of rows 2
Orientation angled
Grid 1.27 mm
Connection solder pin
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
