1337014 | Phoenix Contact

Female connector, 32 pole, pitch 1.27 mm, angled, 1337014

Order No.: 63P3624
EAN: 4063151638429
MPN:
1337014
FR 1,27/ 32-FH
Series: FINEPITCH
1337014 Phoenix Contact PCB Connection Systems

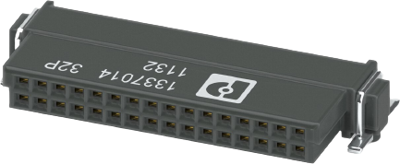

Image may differ
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Available in 10 days: 5,600 pcs.
Leadtime: 2 Weeks **
Total Price:
1,212.85 € *
*incl. VAT plus shipping costs
**Subject to prior sale
560 pcs.
2.1658 €

SMD female connector, 1337014, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 500 V AC, Number of positions: 32, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Pin number 32 pole
Rated current 2.2 A
Additional parts equipped
Number of rows 2
Connection solder pin
Grid 1.27 mm
Contact type socket
Orientation angled
Version female connector
contact surface gold-plated
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
