1334092 | Phoenix Contact
Female connector, 80 pole, pitch 0.635 mm, angled, black, 1334092
Unit Price (€ / pc.)
3.0107 € *
Available in 10 days: 3,500 pcs. - if ordered today

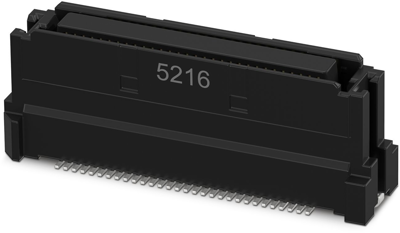

SMD female connector, 1334092, Phoenix Contact
SMD female connector, nominal current: 0.5 A, Test voltage: 500 V AC, number of positions: 80, pitch: 0.635 mm, color: black, contact surface: Gold, contact connection type: Socket, mounting: SMD soldering.
Features
- Design-in support during device development using MCAD/ECAD data and a free sample service
- Easy mating with integrated keyways and tolerance compensation for error-free production
- Time savings during the development process with customer-specific simulations for data integrity
- High-speed data transmission up to 30 Gbps for various possible applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 125 V | |
| Rated current | 0.5 A | |
| Grid | 0.635 mm | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Version | female connector | |
| Colour | black | |
| Connection | PCB connection | |
| Breakable | No | |
| Pin number | 80 pole | |
| Additional parts | equipped | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
