1306377 | Phoenix Contact

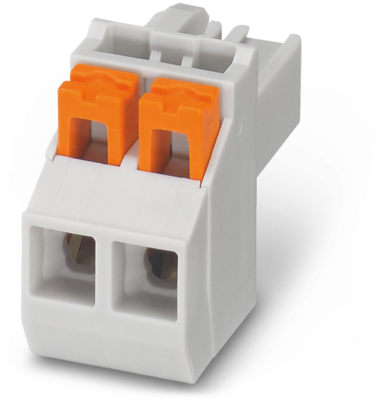

Socket, 2 pole, pitch 5 mm, straight, gray, 1306377
Unit Price (€ / pc.)
6.3070 € *
Available in 10 days: 2,500 pcs. - if ordered today
Total Price:
6.31 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3070 €
10 pcs.
5.4026 €
50 pcs.
5.0694 €
100 pcs.
4.9147 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1306377, Phoenix Contact
PCB connector, nominal cross section: 2.5 mm², color: light gray, nominal current: 16 A, rated voltage (III/2): 300 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PSPT 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, locking: without, mounting method: without, type of packaging: packed in cardboard, Version with coding and printing.
Features
- Time saving push-in connection, tools not required
- Variable coding, for reliable protection against incorrect connection
- Quick and easily coded when initially connecting the connector and header
- Intuitive operation due to color-coded actuating push button
Technical specifications
| Pin number | 2 pole | |
| Number of rows | 1 | |
| Type of locking | No | |
| Version | socket header | |
| Grid | 5 mm | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 300 V | |
| Connection | push-in spring connection | |
| Colour | gray | |
| contact surface | tin-plated | |
| Rated current | 16 A |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
