1288261 | Phoenix Contact

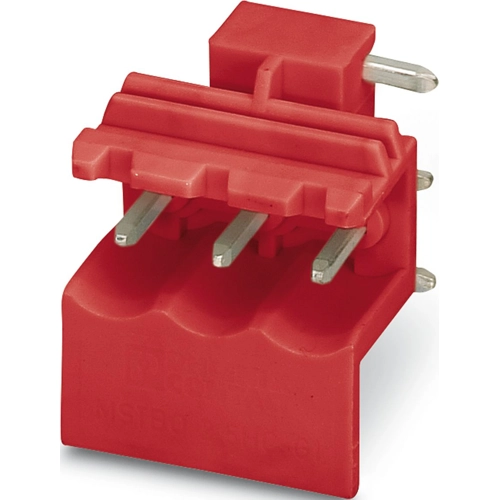

PCB base strip, 3 pole, pitch 5 mm, angled, red, 1288261

Order No.: 64P2621
EAN: 4063151330804
MPN:
1288261
Series: MSTBO 2,5
1288261 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,285.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.2852 €

PCB header, 1288261, Phoenix Contact

PCB header, Nominal cross section: 2.5 mm², Color: red, Nominal current: 12 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of potentials: 3, Number of rows: 1, Number of positions: 3, Number of connections: 3, Product range: MSTBO 2,5/..-G1R, Pitch: 5 mm, Connection method: pluggable, Mounting: Wave soldering, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Fixed coding of the position: 2, Item with lateral pin outlet on the right.

Features

  • Plug-in direction orthogonal to the PCB
Technical specifications
Colour red
Type of locking No
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Pin number 3 pole
Version pin header
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
