1269212 | Phoenix Contact

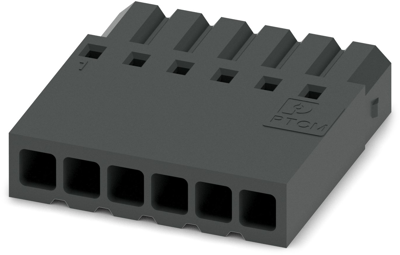

Socket header, 6 pole, pitch 2.5 mm, straight, black, 1269212
Unit Price (€ / pc.)
0.8568 € *
Available in 10 days: 1,100 pcs. - if ordered today
PCB connector, 1269212, Phoenix Contact
PCB connector, nominal cross section: 0.75 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 6, product range: PTCM 0,5/..-P, pitch: 2.5 mm, connection method: Crimp connection, plug-in system: COMBICON PTSM.
Features
- High current carrying capacity of 6 A in very compact dimensions
- Cost-effective connection of crimped conductors in large quantities
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Pin number | 6 pole | |
| Grid | 2.5 mm | |
| Colour | black | |
| Version | socket header | |
| Connection | crimp connection | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Orientation | straight | |
| Number of rows | 1 | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
