1230708 | Phoenix Contact

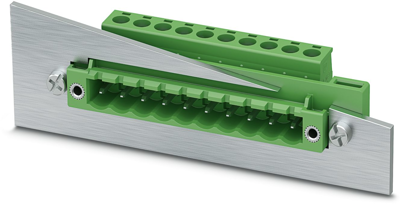

Pin header, 18 pole, pitch 5.08 mm, angled, green, 1230708
Unit Price (€ / pc.)
14.0658 € *
Available: 0 pcs.
Leadtime: On Request **
Feed-through plug, 1230708, Phoenix Contact
Feed-through connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of rows: 1, number of positions: 18, product range: DFK-MSTB 2,5/..-STF-LR, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Lock & release threaded flange, type of packaging: packed in cardboard.
Features
- Well-known connection principle allows worldwide use
- Cable connection on the inside of the device enables flexible positioning of the panel feed-through
- Can be combined with the MSTB 2,5 range
Technical specifications
| Connection | Schraubanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | abgewinkelt | |
| Pin number | 18-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
