1163795 | Phoenix Contact

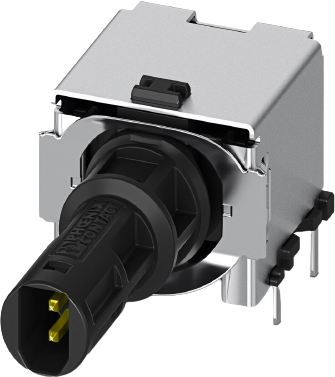

PCB connector, 2 pole, angled, black/silver, 1163795
Unit Price (€ / pc.)
8.8298 € *
Standard delivery time from the manufacturer is: 9 Weeks
SPE PCB connector, 1163795, Phoenix Contact
SPE PCB connector, Design: IEC 63171-5, Degree of protection: IP65/IP67, Number of positions: 2, CAT B (ISO/IEC 63171), Material: Metal, Connection method: THR solder connection, Single pair ethernet.
Features
- THR solderable
- Data transmission up to 600 MHz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Breakable | No | |
| Colour | black/silver | |
| Rated voltage | 72 V | |
| Connection | solder connection | |
| Pin number | 2 pole | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Version | connector | |
| Number of rows | 1 | |
| Contact type | socket | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
