1163793 | Phoenix Contact

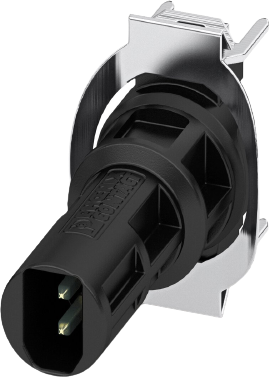

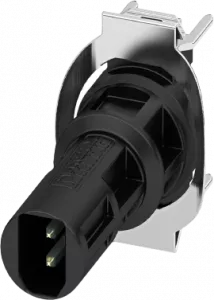

PCB connector, 2 pole, straight, black, 1163793
Unit Price (€ / pc.)
   8.0682 €  *
   Available in 5 Days: 100 pcs. - if ordered today
 Total Price:
  8.07 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 8.0682 €
 10 pcs.
 7.2590 €
 50 pcs.
 6.3784 €
 100 pcs.
 5.6287 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 SPE PCB connector, 1163793, Phoenix Contact
SPE PCB connector, Design: IEC 63171-5, Degree of protection: IP20, Number of positions: 2, 10 Gbps, CAT B (ISO/IEC 63171), Material: Plastic, Connection method: THR solder connection, Single pair ethernet.
Features
- THR solderable
- Data transmission up to 600 MHz
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Orientation | straight | |
| Rated voltage | 72 V | |
| Connection | solder connection | |
| Breakable | No | |
| Pin number | 2 pole | |
| Version | connector | |
| Number of rows | 1 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
