1156921 | Phoenix Contact

Male connector, 80 pole, pitch 2.54 mm, straight, black, 1156921

Order No.: 64P1783
EAN: 4063151160883
MPN:
1156921
FQ 2,54D/ 80-PV- 380-1-BT
Series: FINEPITCH
1156921 Phoenix Contact PCB Connection Systems

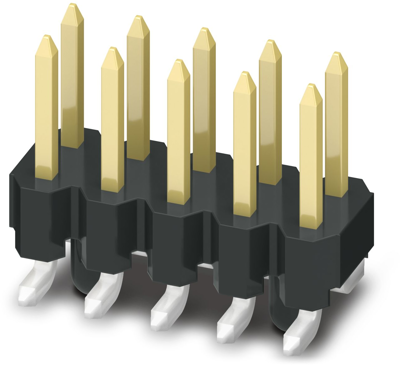

Image may differ
Unit Price (€ / pc.)
5.4859 € *
Available in 10 days: 500 pcs. - if ordered today
Total Price:
5.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4859 €

Pin strip, 1156921, Phoenix Contact

This SMD pin header has a nominal current rating of 3 A and a test voltage of 500 V AC. It features 80 positions with a pitch of 2.54 mm, comes in black color, and has gold contact surfaces. The contact connection type is a pin, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Filter Property Value
Contact type pin
Pin number 80 pole
Grid 2.54 mm
Colour black
Version male connector
Connection solder connection
Connection plating tin-plated
Rated current 3 A
Orientation straight
Number of rows 2
contact surface gold-plated
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
