1156914 | Phoenix Contact

Male connector, 10 pole, pitch 2.54 mm, straight, black, 1156914

Order No.: 64P1702
EAN: 4063151160128
MPN:
1156914
FQ 2,54D/ 10-PV- 380-1-BT
Series: FINEPITCH
1156914 Phoenix Contact PCB Connection Systems

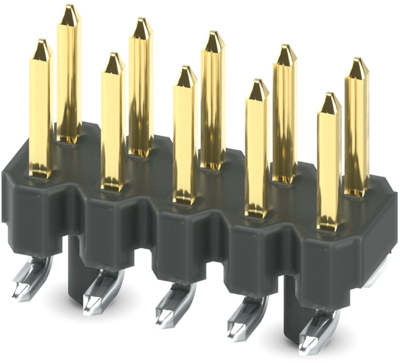

Image may differ
Unit Price (€ / pc.)
0.6783 € *
Available in 10 days: 223 pcs. - if ordered today
Total Price:
0.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.6783 €

Pin strip, 1156914, Phoenix Contact

This SMD pin header has a nominal current rating of 3 A and a test voltage of 500 V AC. It features 10 positions with a pitch of 2.54 mm, comes in black color, and has gold contact surfaces. The contact connection type is a pin, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Filter Property Value
Contact type pin
Pin number 10 pole
Grid 2.54 mm
Colour black
Version male connector
Connection solder connection
Connection plating tin-plated
Rated current 3 A
Orientation straight
Number of rows 2
contact surface gold-plated
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
