1156904 | Phoenix Contact

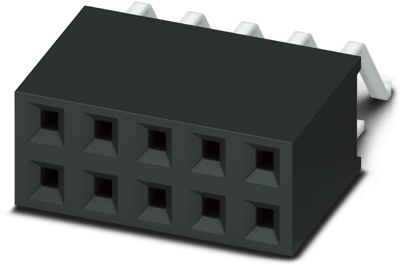

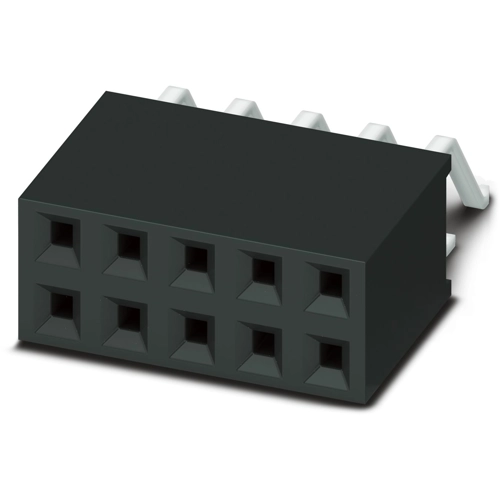

Socket header, 20 pole, pitch 2.54 mm, angled, black, 1156904

Order No.: 64P1717
EAN: 4063151160272
MPN:
1156904
FQ 2,54D/ 20-SH-0-BT
Series: FINEPITCH
1156904 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6303 €

Female strip, 1156904, Phoenix Contact

This SMD socket has a nominal current rating of 3 A and a test voltage of 500 V AC. It features 20 positions with a pitch of 2.54 mm, comes in black color, and has gold contact surfaces. The contact connection type is a socket, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 20 pole
Version socket header
Orientation angled
Connection solder connection
Contact type socket
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
