1156865 | Phoenix Contact

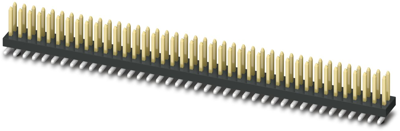

Male connector, 80 pole, pitch 1.27 mm, straight, black, 1156865

Order No.: 64P1784
EAN: 4063151160548
MPN:
1156865
FQ 1,27D/ 80-PV- 160-1-BR
Series: FINEPITCH
1156865 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
4.2483 € *
Available in 10 days: 2,100 pcs. - if ordered today
Total Price:
2,973.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
700 pcs.
4.2483 €

Pin strip, 1156865, Phoenix Contact

This SMD pin header has a nominal current rating of 1 A and a test voltage of 500 V AC. It features 80 positions with a pitch of 1.27 mm, comes in black color, and has gold contact surfaces. The contact connection type is a pin, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Filter Property Value
Contact type pin
Pin number 80 pole
Grid 1.27 mm
Colour black
Version male connector
Connection solder connection
Connection plating tin-plated
Rated current 1 A
Orientation straight
Number of rows 2
contact surface gold-plated
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
