1156862 | Phoenix Contact

Pin header, 20 pole, pitch 1.27 mm, straight, black, 1156862

Order No.: 64P1715
EAN: 4063151160524
MPN:
1156862
FQ 1,27D/ 20-PV- 160-1-BR
Series: FINEPITCH
1156862 Phoenix Contact PCB Connection Systems

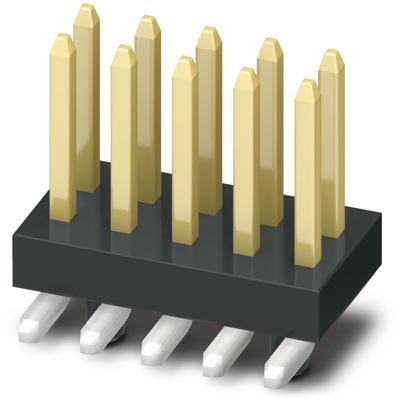

Image may differ
Unit Price (€ / pc.)
1.071 € *
Available in 10 days: 700 pcs. - if ordered today
Total Price:
749.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
700 pcs.
1.071 €

Pin strip, 1156862, Phoenix Contact

This SMD pin header has a nominal current rating of 1 A and a test voltage of 500 V AC. It features 20 positions with a pitch of 1.27 mm, comes in black color, and has gold contact surfaces. The contact connection type is a pin, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Grid 1.27 mm
Version pin header
contact surface gold-plated
Connection plating tin-plated
Rated current 1 A
Contact type pin
Colour black
Number of rows 2
Pin number 20 pole
Type of locking Yes
Orientation straight
Connection solder connection
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
