1156861 | Phoenix Contact

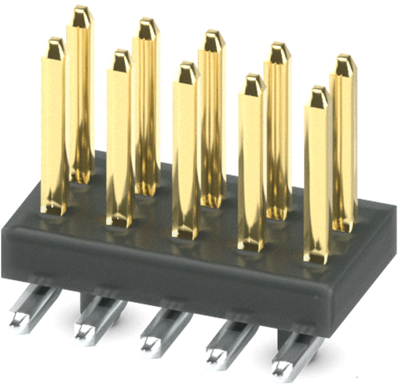

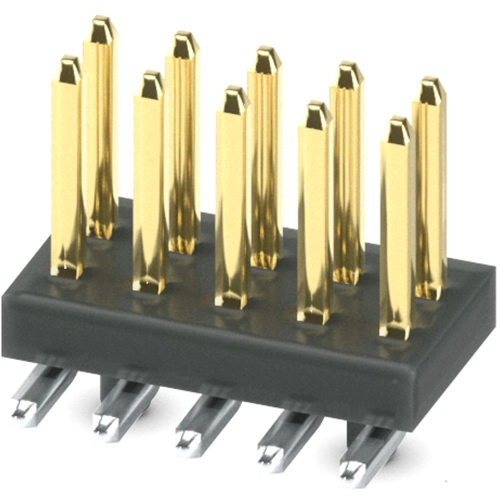

Pin header, 10 pole, pitch 1.27 mm, straight, black, 1156861

Order No.: 64P1709
EAN: 4063151160456
MPN:
1156861
FQ 1,27D/ 10-PV- 160-1-BR
Series: FINEPITCH
1156861 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 10 days: 3,500 pcs. - if ordered today
Total Price:
0.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.6902 €

Pin strip, 1156861, Phoenix Contact

This SMD pin header has a nominal current rating of 1 A and a test voltage of 500 V AC. It features 10 positions with a pitch of 1.27 mm, comes in black color, and has gold contact surfaces. The contact connection type is a pin, and it is designed for SMD soldering mounting.

Features

  • Reliable mechanical and electrical connections thanks to the double-sided contact system
  • Designed for integration into the SMT soldering process
  • Clear and cost-optimized design
  • Suitable for a multitude of applications
Technical specifications
Number of rows 2
Contact type pin
Connection solder connection
Type of locking Yes
Grid 1.27 mm
contact surface gold-plated
Pin number 10 pole
Colour black
Rated current 1 A
Version pin header
Orientation straight
Connection plating tin-plated
Logistics
Country of origin CN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
