1102110 | Phoenix Contact

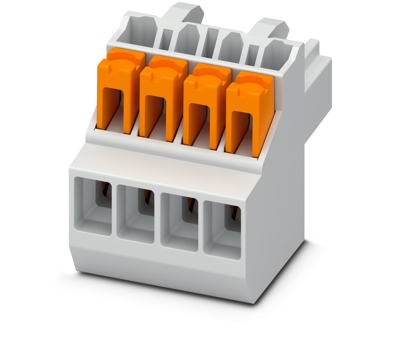

Socket, 4 pole, pitch 3.5 mm, straight, gray, 1102110

Order No.: 64P3137
EAN: 4055626961781
MPN:
1102110
Series: PSPT
1102110 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
5.3312 € *
Available in 10 days: 3,523 pcs. - if ordered today
Total Price:
5.33 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3312 €
10 pcs.
4.5696 €
50 pcs.
4.3316 €
100 pcs.
4.1531 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connector, 1102110, Phoenix Contact

PCB connector, nominal cross section: 1.5 mm², color: light gray, nominal current: 8 A, rated voltage (III/2): 150 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PSPT 1,5/..-ST-3,5, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: PSPT 1,5, locking: without, mounting method: without, type of packaging: packed in cardboard, Color of the spring lever: orange.

Features

  • Time saving push-in connection, tools not required
  • Variable coding, for reliable protection against incorrect connection
  • Push-in technology for quick and easy wiring
  • Quick and easily coded when initially connecting the connector and header
  • Intuitive operation due to color-coded actuating push button
  • High packing density with 3.5 mm pitch
Technical specifications
Rated voltage 150 V
Number of rows 1
Contact type socket
Connection push-in spring connection
Type of locking No
Grid 3.5 mm
contact surface tin-plated
Pin number 4 pole
Colour gray
Rated current 8 A
Version socket header
Orientation straight
Connection plating tin-plated
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
