1096144 | Phoenix Contact

Pin header, 10 pole, pitch 5.08 mm, angled, green, 1096144

Order No.: 64P1679
EAN: 4055626925363
MPN:
1096144
DFK-MSTB 2,5/10-STF-5,08-LR
Series: DFK
1096144 Phoenix Contact PCB Connection Systems

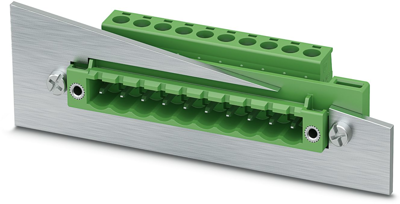

Image may differ
Unit Price (€ / pc.)
8.7822 € *
Available in 10 days: 2,279 pcs. - if ordered today
Total Price:
439.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
8.7822 €

Feed-through plug, 1096144, Phoenix Contact

Feed-through connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: DFK-MSTB 2,5/..-STF-LR, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Lock & release threaded flange, type of packaging: packed in cardboard.

Features

  • Well-known connection principle allows worldwide use
  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
  • Can be combined with the MSTB 2,5 range
Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 12 A
Grid 5.08 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation angled
Connection screw connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
