1054548 | Phoenix Contact

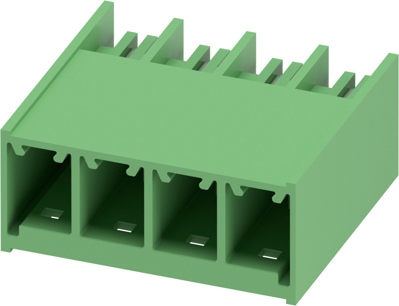

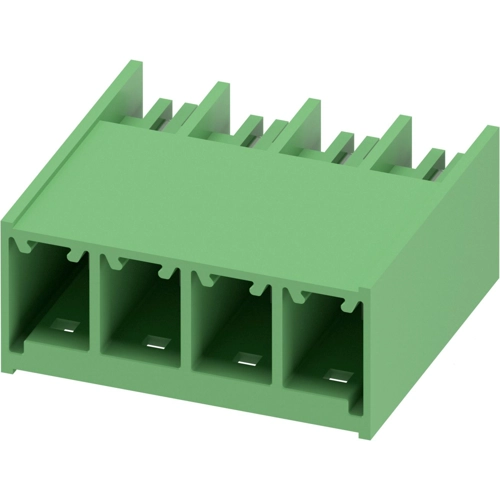

Pin header, 4 pole, pitch 7.62 mm, angled, green, 1054548

Order No.: 64P2255
EAN: 4055626689432
MPN:
1054548
PC 6/ 4-G-7,62
Series: PC
1054548 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
4.0579 € *
Available in 10 days: 35 pcs. - if ordered today
Total Price:
4.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0579 €

PCB header, 1054548, Phoenix Contact

PCB header, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 6/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6, Pin connector pattern alignment: Standard, locking: without, mounting: without.

Features

  • Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
  • Easy PCB replacement thanks to plug-in modules
  • Well-known mounting principle allows worldwide use
Technical specifications
Filter Property Value
Rated current 41 A
Rated voltage 630 V
Version pin header
Number of rows 1
Orientation angled
contact surface tin-plated
Pin number 4 pole
Grid 7.62 mm
Type of locking No
Contact type pin
Colour green
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
