1047902 | Phoenix Contact

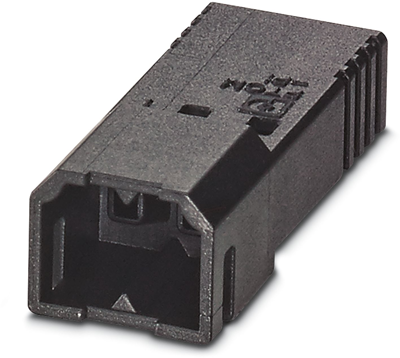

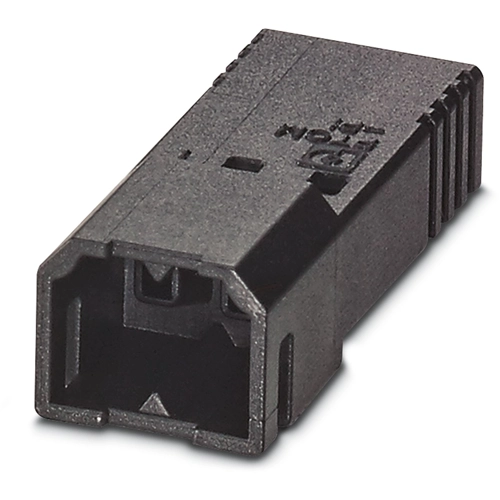

Socket header, 8 pole, pitch 2.5 mm, straight, black, 1047902
Unit Price (€ / pc.)
1.19 € *
Available in 5 Days: 500 pcs. - if ordered today
PCB connector, 1047902, Phoenix Contact
PCB connector, nominal cross section: 0.75 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PTCM 0,5/..-PI, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PTSM, locking: Snap-in locking, mounting: Engagement nose.
Features
- High current carrying capacity of 6 A in very compact dimensions
- Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
- Cost-effective connection of crimped conductors in large quantities
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Contact type | pin | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Rated voltage | 160 V | |
| Connection | crimp connection | |
| Pin number | 8 pole | |
| Version | pin header | |
| Type of locking | snap-in locking | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
