1047894 | Phoenix Contact

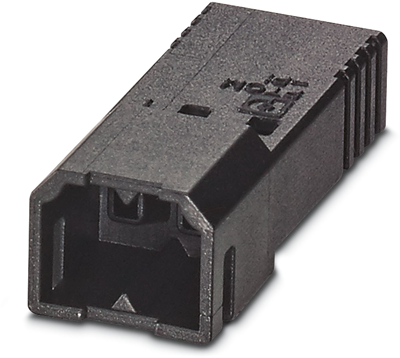

Socket header, 2 pole, pitch 2.5 mm, straight, black, 1047894

Order No.: 64P2085
EAN: 4055626649603
MPN:
1047894
PTCM 0,5/ 2-PI-2,5 BK
Series: PTCM
1047894 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Available in 10 days: 250 pcs. - if ordered today
Total Price:
0.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3927 €

PCB connector, 1047894, Phoenix Contact

PCB connector, nominal cross section: 0.75 mm², color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PTCM 0,5/..-PI, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PTSM, locking: Snap-in locking, mounting: Engagement nose.

Features

  • High current carrying capacity of 6 A in very compact dimensions
  • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
  • Cost-effective connection of crimped conductors in large quantities
Technical specifications
Type of locking snap-in locking
Grid 2.5 mm
Version pin header
Rated current 6 A
Contact type pin
Orientation straight
contact surface tin-plated
Colour black
Rated voltage 160 V
Connection crimp connection
Number of rows 1
Pin number 2 pole
Logistics
Customs tariff number 85389099
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
