1044740 | Phoenix Contact

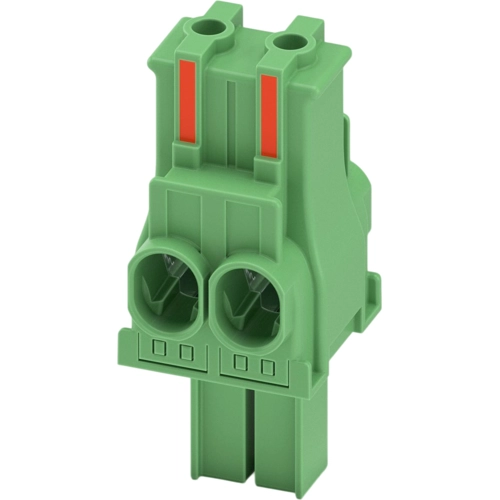

Socket header, 2 pole, pitch 7.62 mm, straight, green, 1044740
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.6735 € *
Available in 5 Days: 19 pcs. - if ordered today
Total Price:
12.67 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6735 €
10 pcs.
11.8881 €
50 pcs.
11.1860 €
100 pcs.
10.7100 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1044740, Phoenix Contact
PCB connector, nominal cross section: 16 mm², color: green, nominal current: 32 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PC 6/.-ST-BUS, pitch: 7.62 mm, connection method: Displacement connection, screw head form: T15 Torx®, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 6, locking: without, mounting method: without, type of packaging: packed in cardboard.
Features
- Potentials can be easily looped through – ideal for BUS applications
- Connection without conductor pretreatment for huge time savings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | PCB connector | |
| Contact type | socket | |
| Pin number | 2 pole | |
| Grid | 7.62 mm | |
| Connection | IDC connection | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 1000 V | |
| Rated current | 32 A | |
| Number of rows | 1 | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
