0710251 | Phoenix Contact

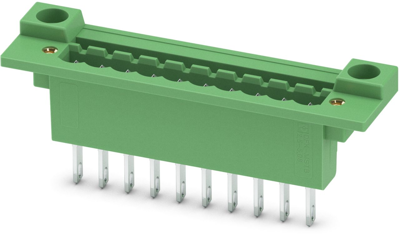

Pin header, 10 pole, pitch 5.08 mm, straight, green, 0710251

Order No.: 64P1414
EAN: 4017918005283
MPN:
0710251
DFK-MSTB 2,5/10-GF-5,08
Series: DFK
0710251 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
8.5442 € *
Available in 10 days: 400 pcs. - if ordered today
Total Price:
8.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.5442 €

Feed-through header, 0710251, Phoenix Contact

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: DFK-MSTB 2,5/..-GF, pitch: 5.08 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard.

Features

  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
  • Free choice – permanent solder connection or standardized slip-on connection
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
  • Screwable flange for superior mechanical stability
Technical specifications
contact surface tin-plated
Connection solder/plug-in connection
Number of rows 1
Colour green
Contact type pin
Additional parts equipped
Rated current 12 A
Rated voltage 320 V
Pin number 10 pole
Orientation straight
Version pin header
Type of locking Yes
Connection plating tin-plated
Grid 5.08 mm
Logistics
Customs tariff number 85366930
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
