0707374 | Phoenix Contact

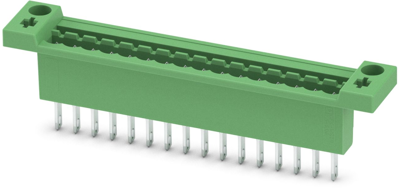

Pin header, 16 pole, pitch 5.08 mm, straight, green, 0707374
Unit Price (€ / pc.)
10.7576 € *
Available in 5 Days: 250 pcs. - if ordered today
Feed-through header, 0707374, Phoenix Contact
Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: DFK-MSTB 2,5/..-G, pitch: 5.08 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard.
Features
- Cable connection on the inside of the device enables flexible positioning of the panel feed-through
- Free choice – permanent solder connection or standardized slip-on connection
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Version | pin header | |
| Pin number | 16 pole | |
| Orientation | straight | |
| Grid | 5.08 mm | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection | solder/plug-in connection | |
| Type of locking | No | |
| Number of rows | 1 | |
| Connection plating | tin-plated | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
