0707280 | Phoenix Contact

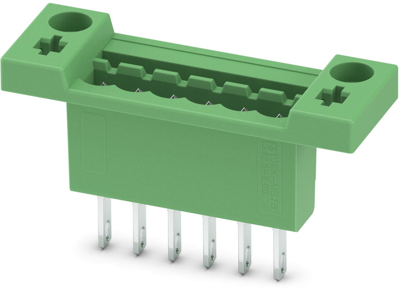

Pin header, 6 pole, pitch 5.08 mm, straight, green, 0707280

Order No.: 64P1132
EAN: 4017918004057
MPN:
0707280
DFK-MSTB 2,5/ 6-G-5,08
Series: DFK
0707280 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available in 10 days: 400 pcs. - if ordered today
Total Price:
4.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3554 €

Feed-through header, 0707280, Phoenix Contact

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: DFK-MSTB 2,5/..-G, pitch: 5.08 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard.

Features

  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
  • Free choice – permanent solder connection or standardized slip-on connection
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Number of rows 1
Grid 5.08 mm
Orientation straight
Pin number 6 pole
Connection solder/plug-in connection
Type of locking No
Colour green
Rated current 12 A
Additional parts equipped
Contact type pin
Version pin header
Connection plating tin-plated
contact surface tin-plated
Rated voltage 320 V
Logistics
Customs tariff number 85366930
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
