0707196 | Phoenix Contact

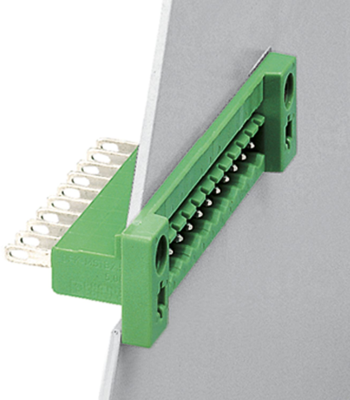

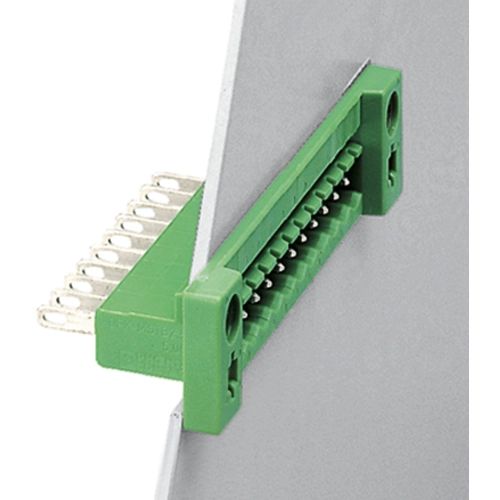

Pin header, 12 pole, pitch 5 mm, straight, green, 0707196

Order No.: 64P1375
EAN: 4017918003968
MPN:
0707196
DFK-MSTB 2,5/12-G
Series: DFK
0707196 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
8.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.3776 €

Feed-through header, 0707196, Phoenix Contact

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: DFK-MSTB 2,5/..-G, pitch: 5 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard.

Features

  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
  • Free choice – permanent solder connection or standardized slip-on connection
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Connection solder/plug-in connection
Grid 5 mm
Rated voltage 320 V
Number of rows 1
Additional parts equipped
Orientation straight
Version pin header
Type of locking No
Colour green
contact surface tin-plated
Contact type pin
Pin number 12 pole
Connection plating tin-plated
Rated current 12 A
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
