0707112 | Phoenix Contact

Pin header, 3 pole, pitch 5 mm, straight, green, 0707112

Order No.: 64P1066
EAN: 4017918003883
MPN:
0707112
DFK-MSTB 2,5/ 3-G
Series: DFK
0707112 Phoenix Contact PCB Connection Systems

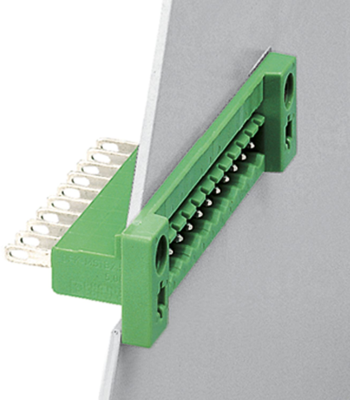

Image may differ
Unit Price (€ / pc.)
2.1777 € *
Available in 10 days: 900 pcs. - if ordered today
Total Price:
2.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.1777 €

Feed-through header, 0707112, Phoenix Contact

Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-MSTB 2,5/..-G, pitch: 5 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard.

Features

  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
  • Free choice – permanent solder connection or standardized slip-on connection
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Number of rows 1
Grid 5 mm
Orientation straight
Pin number 3 pole
Connection solder/plug-in connection
Type of locking No
Colour green
Rated current 12 A
Additional parts equipped
Contact type pin
Version pin header
Connection plating tin-plated
contact surface tin-plated
Rated voltage 320 V
Logistics
Customs tariff number 85366930
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
