1419179 | Phoenix Contact

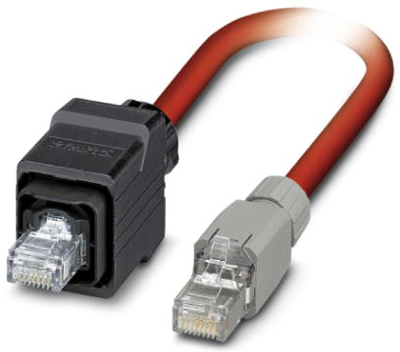

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 5, SF/TQ, PVC, 5 m, red, 1419179
Unit Price (€ / pc.)
86.1917 € *
Standard delivery time from the manufacturer is: On Request
Patch cable, 1419179, Phoenix Contact
Sercos III cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 3020 (traffic red), RJ45 connector/IP67 push-pull, plastic on RJ45 connector/IP20, length: 5 m.
Technical specifications
| Cable length | 5 m | |
| Colour | red | |
| Degree of protection (IP) | IP67/IP20 | |
| AWG cross-section | AWG 22-7 | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| Category | Cat 5 | |
| Detent lever protection available | Yes | |
| Cable type | SF/TQ | |
| Material | PVC | |
| Connection (1) | RJ45 plug, straight |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444210 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| SVHC free | No |
| RoHS conform | Yes |
