1419178 | Phoenix Contact

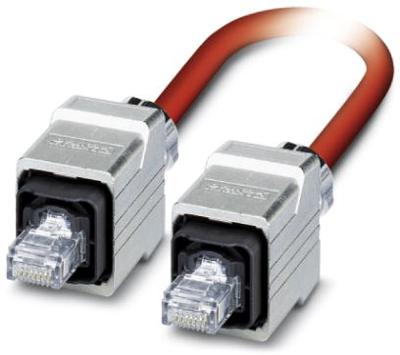

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 5, SF/TQ, PVC, 5 m, red, 1419178
Unit Price (€ / pc.)
97.7704 € *
Standard delivery time from the manufacturer is: 4 Weeks
Patch cable, 1419178, Phoenix Contact
Sercos III cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 3020 (traffic red), RJ45 connector/IP67 push-pull, metal on RJ45 connector/IP67, metal, D-coded, length: 5 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 5 | |
| AWG cross-section | AWG 22-7 | |
| Connection (2) | RJ45 plug, straight | |
| Detent lever protection available | Yes | |
| Colour | red | |
| Cable length | 5 m | |
| Cable type | SF/TQ | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| Connection (1) | RJ45 plug, straight | |
| Version | patch cable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444210 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
